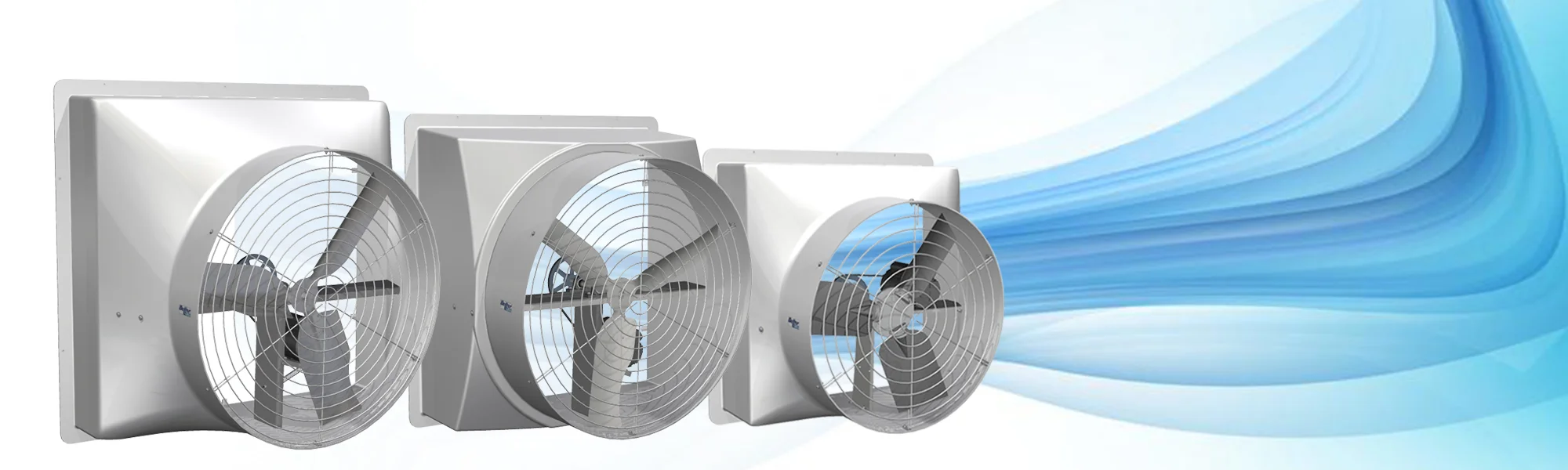

Belt Drive Wall Fans

Housing is UV treated polyethylene, sturdy and corrosion free.
Slanted design projects 12" from outside of barn.
Condensation flows down and away from barn, keeping walls clean and dry.
Inside mounting is flush, eliminating obstructions along walkways.
Aerodynamic housing funnel encourages free air flow.
All motors are epoxy coasted, feature totally enclosed air-over design, thermal overload protection, and double-sealed, permanently-lubricated ball bearings.
All fans carry a one year conditional guarantee. CSA approved.

Product List

Featured

FW-36 Wall Fan

Model No. FW-36

Motor: Belt Drive

Voltage: 115/230 V

RSO: 44.25" W x 44.25" L

RPM: 575 @ 0.75 HP

CFM: 12,000 @ .05 SP

FLA: 8.6/4.3

Shipping Wt: n/a

Housing Material: Fiberglass

CSA Approved

LPF-3800 Wall Fan

Model No. LPF-3800

Motor: Belt Drive

Voltage: 115/230 V

RSO: 44.5" W x 44.5" L

RPM: 575 @ 0.75 HP

CFM 1: 9,473 @ .05 SP

CFM 2: 10,250 @ .05 SP with Discharge Cone installed

FLA: 3.90

Shipping Wt: n/a

Housing Material: Durable Polyethylene

CSA Approved

LPF-4800 Wall Fan

Model No. LPF-4800

Motor: Belt Drive

Voltage: 115/230 V

RSO: 53" W x 53" L

RPM: 850

CFM: 20, 100 @ .05 SP

FLA: 13.6/6.8

Shipping Wt: n/a

Housing Material: Durable Polyethylene

CSA Approved

LPF-5000 Wall Fan

Model No. LPF-5000

Motor: Belt Drive

Voltage: 115/230 V

RSO: 64.25" W x 59" L

RPM: 1 HP

CFM: 21,687 @ .05 SP

FLA: 13.6/6.8

Shipping Wt: n/a

Housing Material: Durable Polyethylene

CSA Approved

FW-50 Wall Fan

Model No. FW-50

Motor: Belt Drive

Voltage: 115/230 V

RSO: 58" W x 58" L

RPM: 503 @ 1.5 HP

CFM: 22, 790 @ .05 SP

FLA: 13.6/6.8

Shipping Wt: n/a

Housing Material: Fiberglass FRP

CSA Approved

FW-54 Wall Fan

Model No. FW-54

Motor: Belt Drive

Voltage: 115/230 V

RSO: 64" W x 64" L

RPM: 535 @ 1.5 HP

CFM 1: 25,300 @ .05 SP

CFM 2: 28,400 @ .05 SP with Discharge Cone installed

FLA: 13.6/6.8

Shipping Wt: n/a

Housing Material: Fiberglass RTM

CSA Approved

FW-6020 Wall Fan

Model No. LPF-6020

Motor: Belt Drive

Voltage: 230 V

RSO: 65.5" W x 65.5" L

RPM: 2 HP

CFM: 33,600 @ .05 SP

FLA: 9.5

Shipping Wt: n/a

Housing Material: Fiberglass FRP

CSA Approved

FW-72

Model No. FW-72

Motor: Belt Drive

Voltage: 230 V (1 phase), 208-230/460 V (3 phase), 575 V (3 phase)

RSO: 78" W x 78" L

RPM: 3 HP

CFM: 45,529 @ .05 SP

FLA:12.5, 8.10-7.71/3.86, 3.09

Shipping Wt: n/a

Housing Material: Fiberglass FRP

CSA Approved

Accessories

Featured

Fan Covers

A new design allows the shutter to stay in place when the winter cover is installed, sealing the fan opening in cold weather to prevent against cold drafts. The construction consists of a PVC frame with dual laminated 1" Styrofoam insulation. All fan covers come with aluminum corner caps to protect against drops and to provide overall better strength and stiffness. The plastic covering also allows easy washing and provides a clean appearance. The fan cover also comes with, clips for mounting and storage. Also available are new, heavy duty mounting clips, made of aluminum to prevent corrosion.

Available for 12" to 72" fan sizes

Fan Cover with Flaps

Available for 12" to 28" fan sizes

Winter Covers

A new design allows the shutter to stay in place when the winter cover is installed, sealing the fan opening in cold weather to prevent against cold drafts. The construction consists of a PVC frame with 1" Styrofoam insulation. The plastic covering also allows easy washing and provides a clean appearance. The winter cover also comes with clips for mounting and storage.

Available for 12" to 60" fan sizes

Winter Cover with Flaps

Available for 12" to 28" fan sizes

Fan Shutter

Fan shutters come standard with all Better Air wall-mount exhaust fans. Open and closes automatically with fan operation. Shutters available separately for replacement in fans of similar design.

Available for 12" to 60" fan sizes

Wind Cone

Wind Protection for Larger Exhaust Fans

Recommended for use instead of fan hood or wall hood with 36" & 48" fans. This design is economical, yet ideal for wind protection on larger fan models.

36" - Model No. CW-36

48" - Model No. CW-48

Discharge Cone

Increase your fans airflow.
Available for 36 to 60 inch fans

Comparison Chart

Belt Drive Wall Fans
