SPW-1200

SPW-1200

$0.00

Counterweight Single Sided Inlet

Model No. SPW-1200

RSO: 22" W x 15.5" L

CFM: 1,200 @ .05 SP

Shipping Wt: 6 lbs

Housing Material: Plastic

Lid Material: Foam

Add To Cart
Details

These units are activated automatically by negative pressure in the barn. A frictionless Styrofoam flap on a PVC continuous hinge swings down, accessing the main room to clean attic air. Flap has adjustable counter-weight to regulate air flow.

Bottom part of housing is insulated to minimize condensation, dripping, or freezing. Ideal for use in combination with re-circulation ducts. All Inlets are constructed with removable insulation stops.

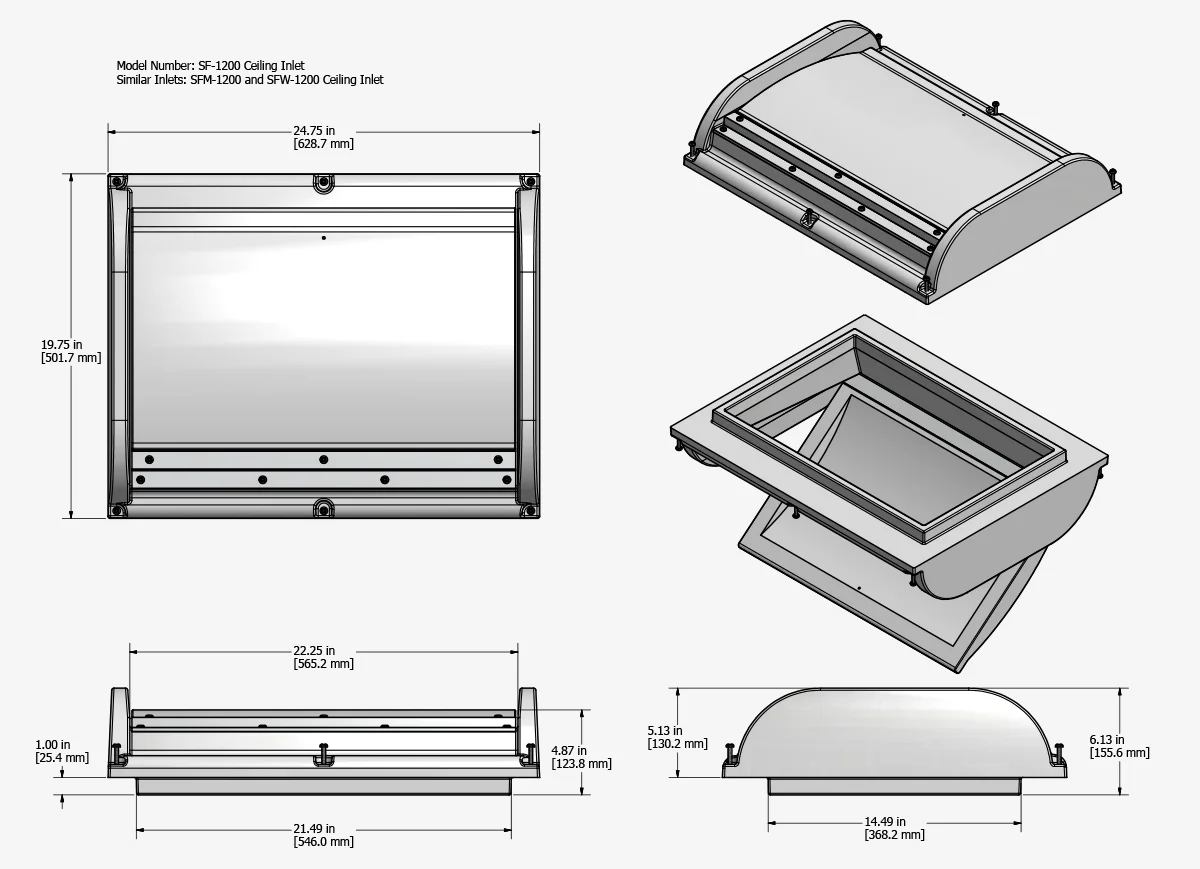

Dimensions and Parts List

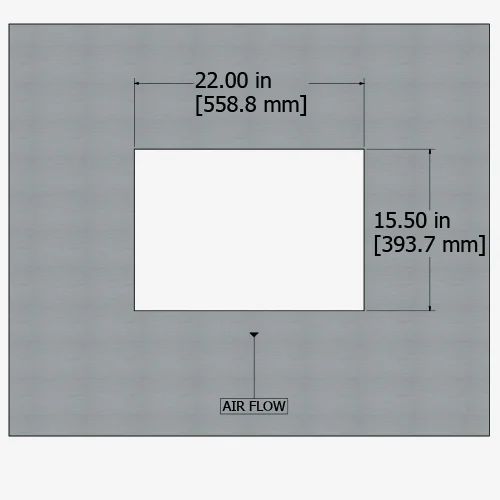

Rough Size Opening
