FW-54 Wall Fan
FW-54 Wall Fan
Model No. FW-54
Motor: Belt Drive
Voltage: 115/230 V

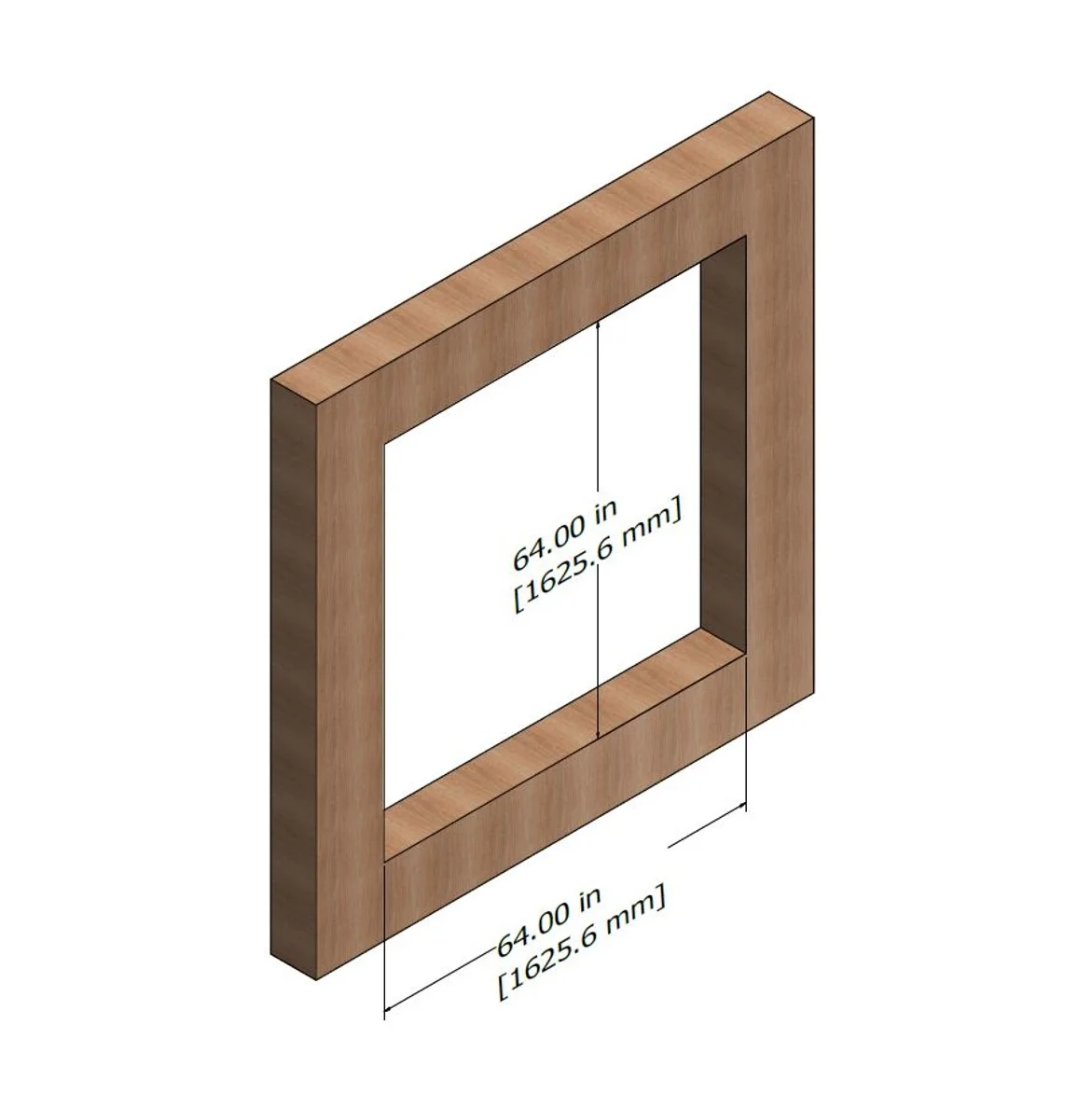

RSO: 64" W x 64" L
RPM: 535 @ 1.5 HP
CFM 1: 25,300 @ .05 SP

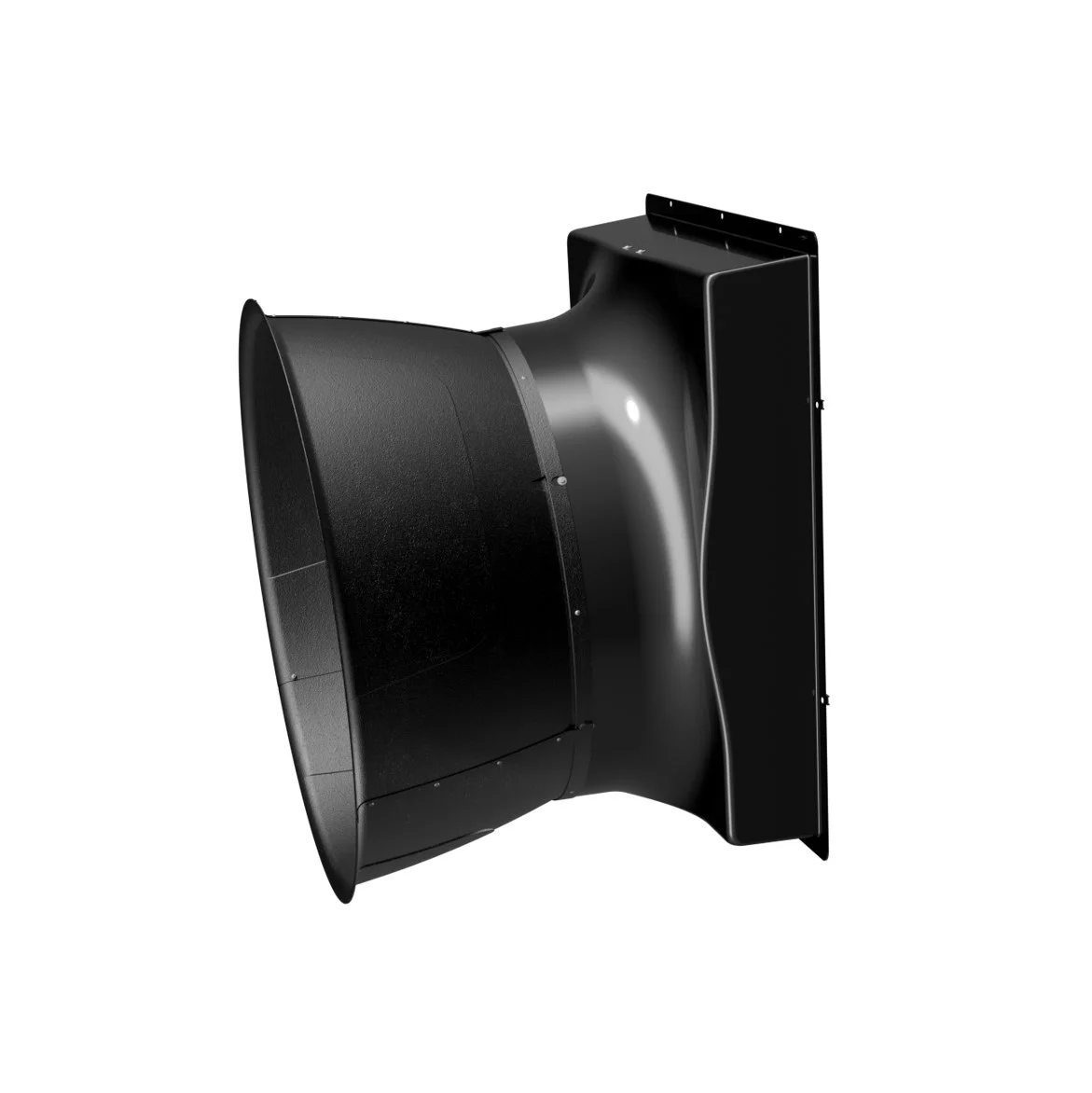

CFM 2: 28,400 @ .05 SP with Discharge Cone installed
FLA: 13.6/6.8
Shipping Wt: n/a
Housing Material: Fiberglass RTM
CSA Approved

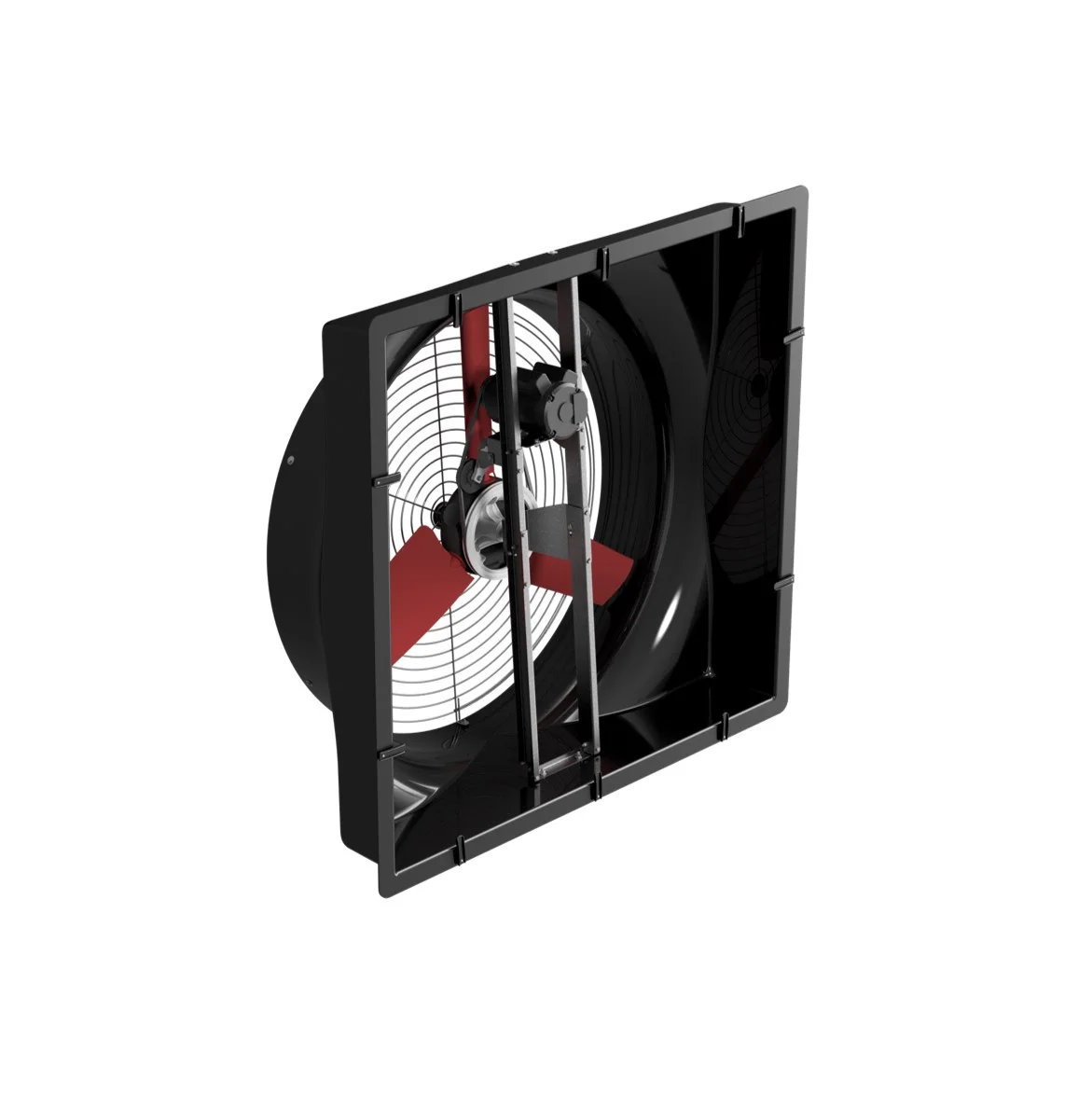

Housing is UV stable fiberglass, sturdy and corrosion free. Slanted design projects 12" from outside of barn. Condensation flows down and away from barn, keeping walls clean and dry. Inside mounting is flush, eliminating obstructions along walkways. Aerodynamic housing funnel encourages free air flow. All motors are epoxy coasted, feature totally enclosed air-over design, thermal overload protection, and double-sealed, permanently-lubricated ball bearings. All fans carry a one year conditional guarantee. CSA approved.
